How to install the manual-loading program
  1. Download the manual-loading program installer
  2. How to install the manual-loading program
  3. How to launch the manual-loading program
1Download the manual-loading program installer

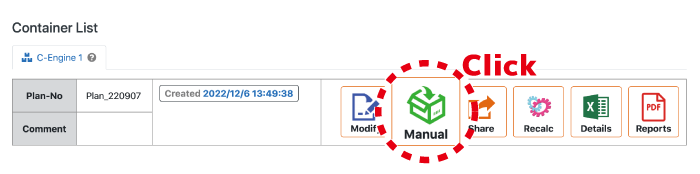

Click the "Manual" button

After calculation, the following screen will be displayed. Click the "Manual" button.

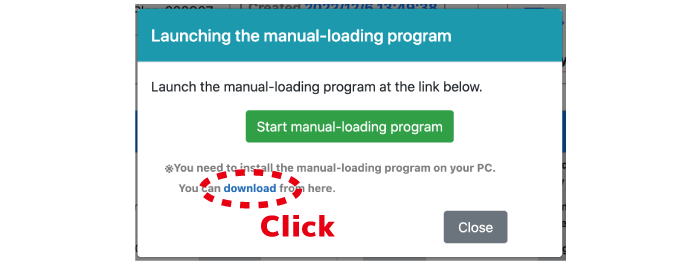

Click "Download"

The "Launching the manual-loading program" window is displayed.
Click the download link ,and download the installer.

2How to install a manual-loading program
Launch the installer

Double-click "Vanning Master Setup" ,and launch the installer.

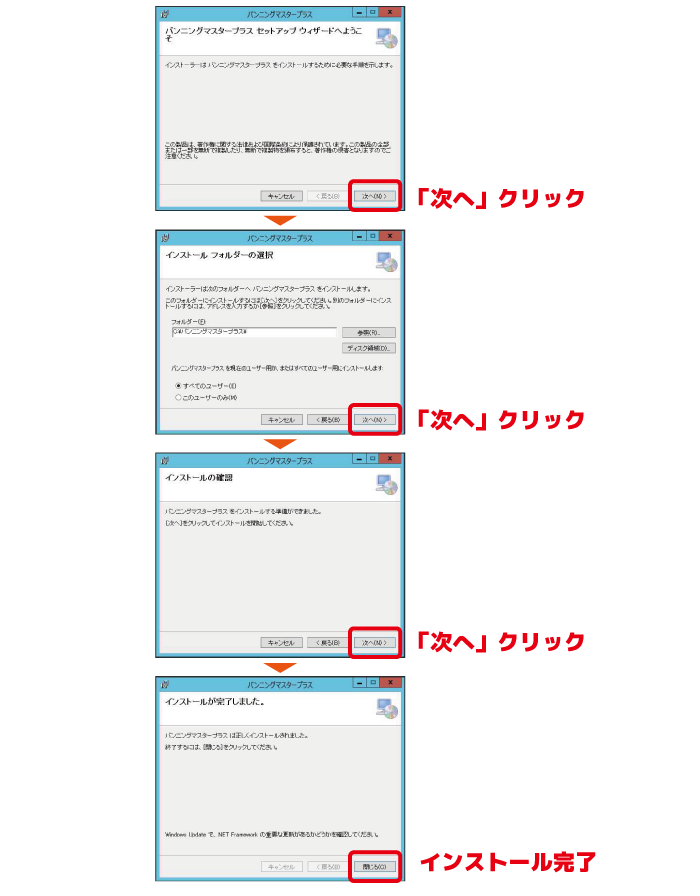

Start installation

The installer will start. Follow the instructions on the screen to install.

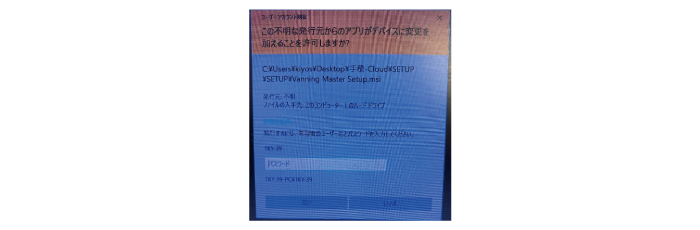

If the Windows login user on your device does not have administrator privileges, the following screen will be displayed. "Do you want to allow apps from this unknown publisher to make changes to your device?"

Enter the admin user username and password.

3How to launch the manual-loading program
Click the "Manual-Load" button

After installing the manual-loading program, open the VM-Cloud screen. Select a plan from the list, and click the "Manual" button.

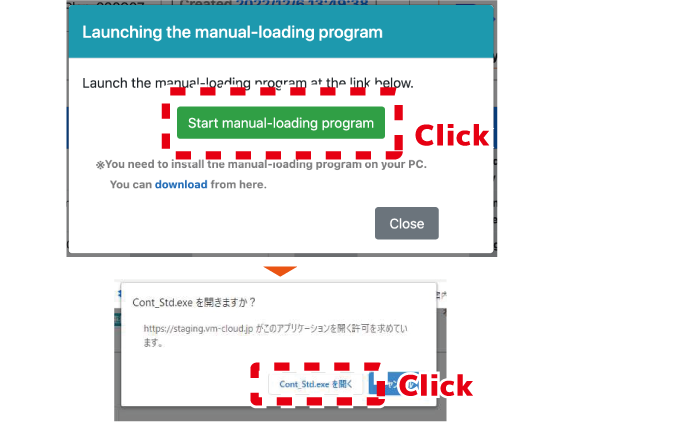

Launch the manual-loading program

The ""Launching the manual-loading program" window will be displayed.
Click the "Start manual-loading program" button.
Click the "Open Cont_Std.exe" button in the next window.

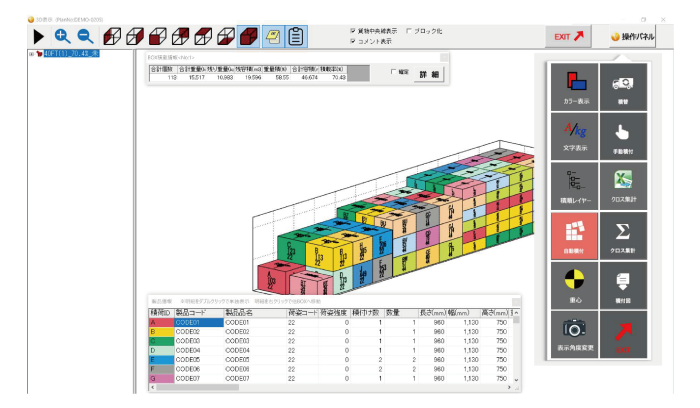

Confirm startup

If the screen below is displayed, it has started normally.
