Operation Manual - 1.Loading pattern calculation of single item pallet

1. How to calculate the single item Pallet pattern

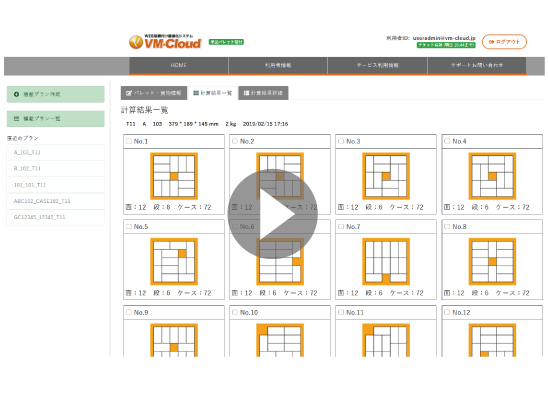

Explanation Video (How to operate)
How to generate a single item Pallet pattern
Single item pallet~Operation procedure for creating a pattern image
1Log in to VM-Cloud
Enter your user ID and password and click "Login".

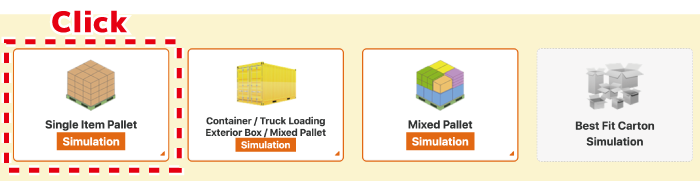

2 Select the loading type
Click the "Single Item Palette Simulation".

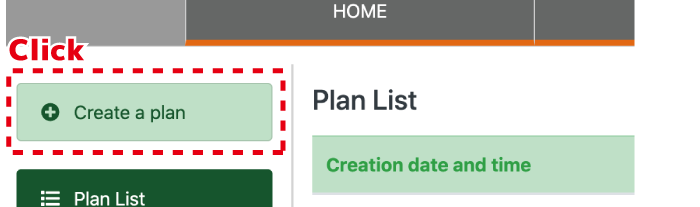

3 Create a new loading plan
Click "Create a Plan".
4 Specify pallet / item information

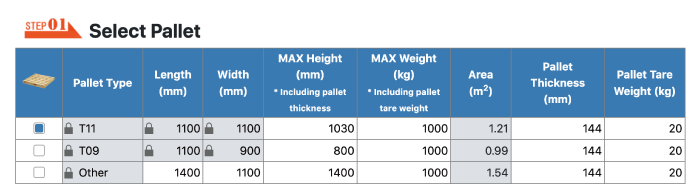

STEP1:Select Palette
Specify the palette. The part with a white background can be edited.

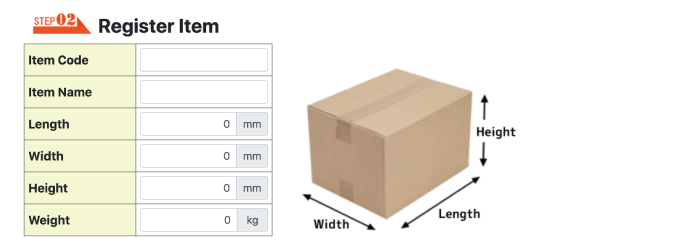

STEP2:Register Item
Enter the item information. Information on cargo code, name, dimensions (mm), and weight (kg) is required.

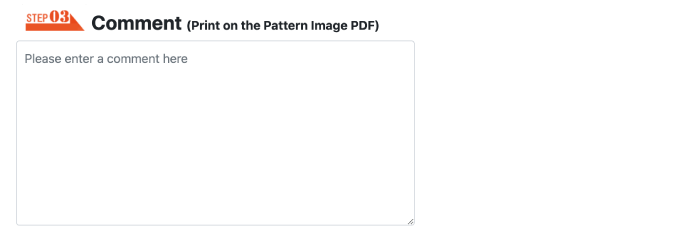

STEP3:Comment
Enter the comment to be printed on the pattern image.It can be omitted. (optional)
STEP4:Calculation
Click the "Pattern Calculation" button.The calculation will start.

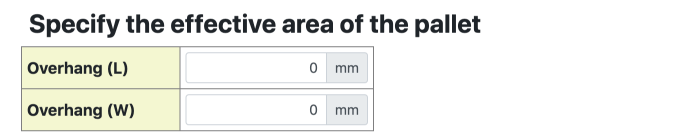

If you allow the item overhang,
specify the effective area of the palette.
Overhang(L):Allow overhang the pallet
Overhang(W):Reduce the effective area of the pallet
※ Enter the total value for left / right change
5 Display the calculation result and select a pattern

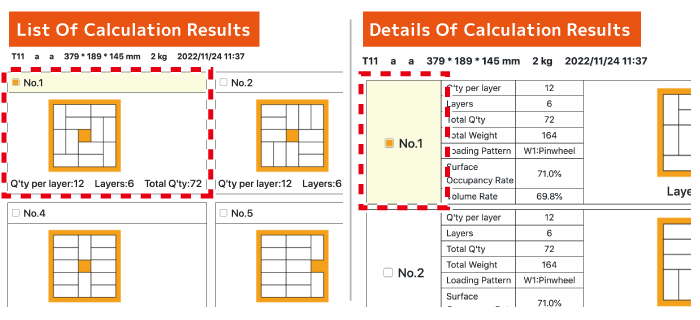

Select the pattern you want to export from "List Of Calculation Results" or "Details Of Calculation Results".
6 Export single item pattern image
After selecting the pattern you want to export, click "Output" .
The comment field is described in the [Notices] item of the pattern image.
Click the "Generate" , and if you like, click the "Download" .

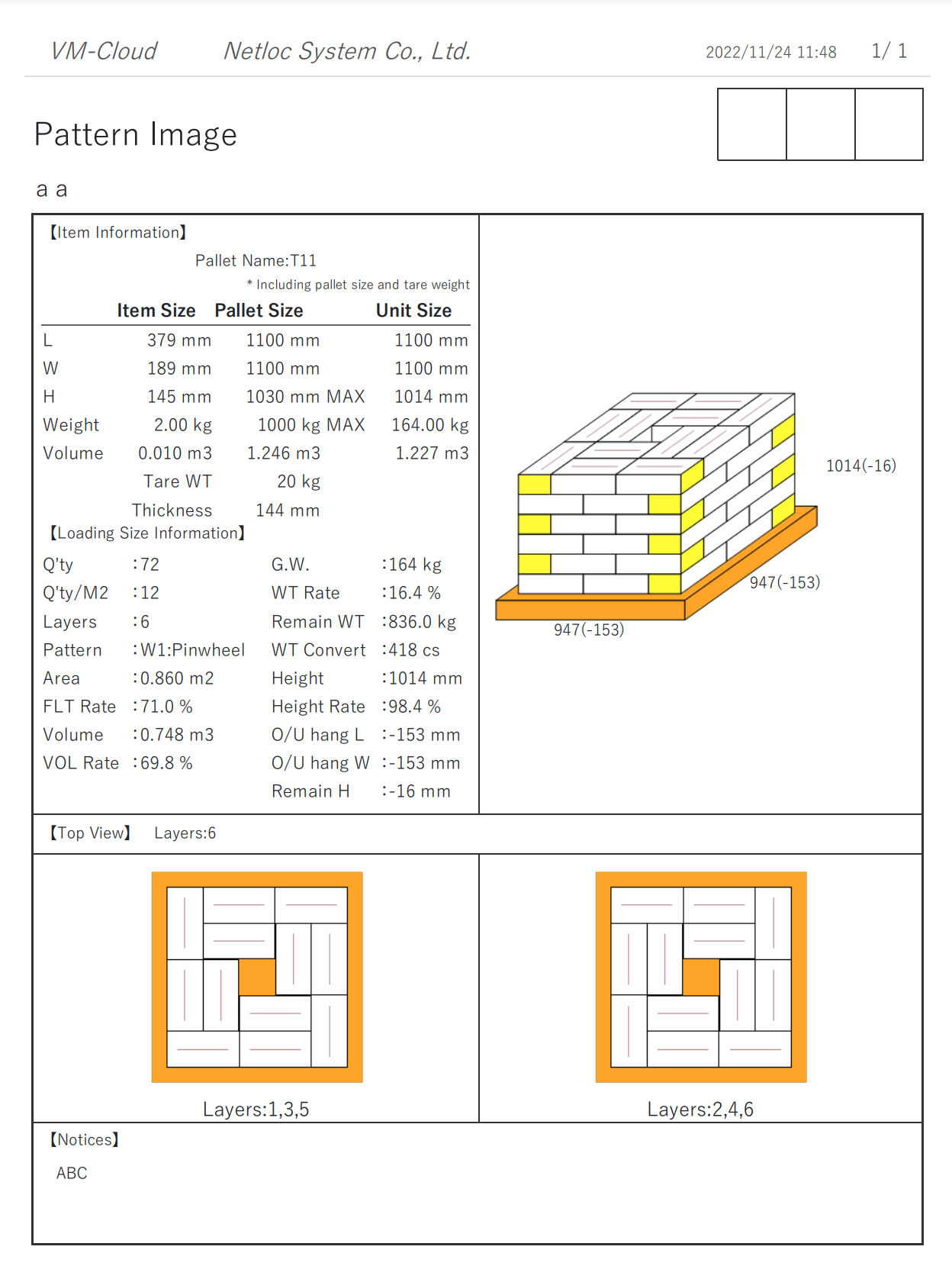

Pattern image sample
